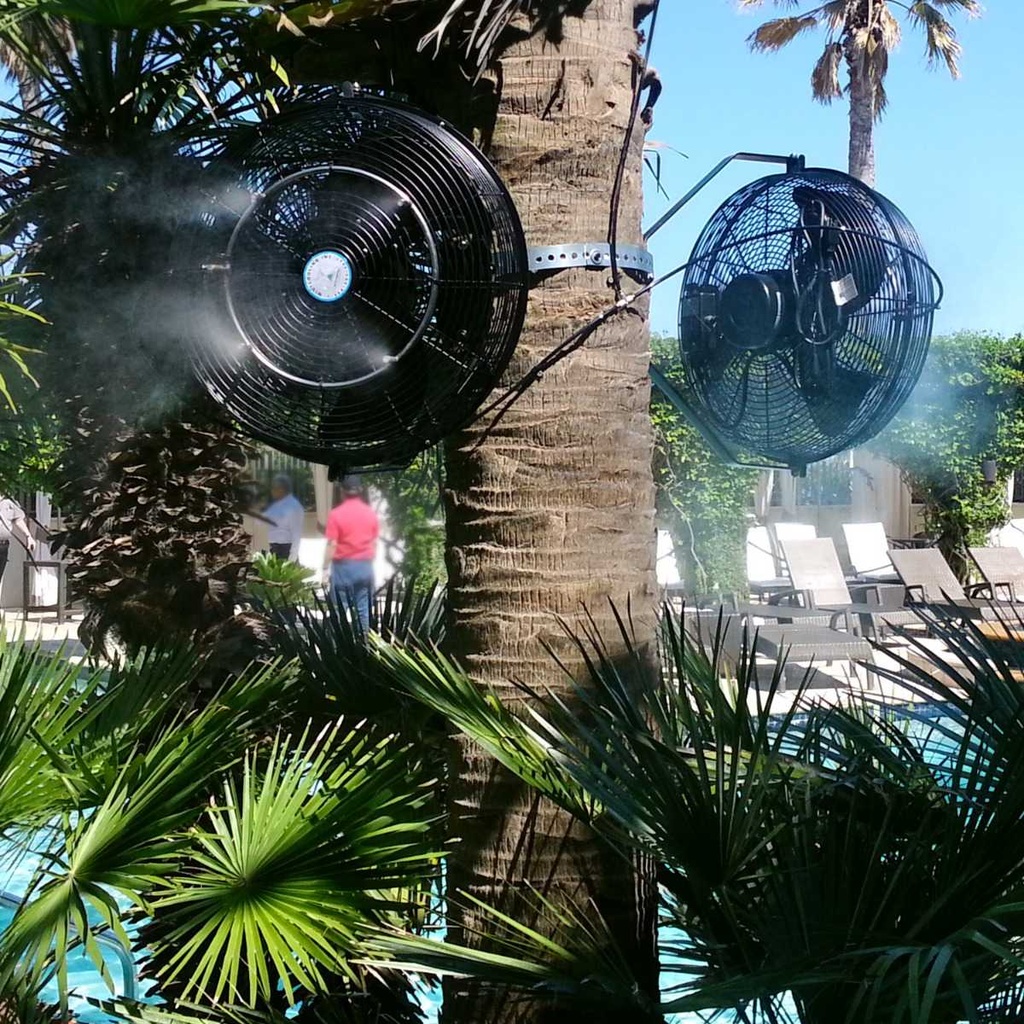

Misting Fan System - Outdoor Fan 18 Inch - High Pressure - With Stainless Steel Ring - Non Oscillating Outdoor Fan
Misting Fan System Includes:
- 1x Max 1500 PSI High pressure Misting Pump with No water cut-off, pressure bypass, Solenoid, outdoor enclosure, and Commercial Filtration
- 1x High Velocity 18'' Diameter 3 speed Outdoor Fan with Mounting Bracket
- 1x Stainless Steel Fan Misting Ring
- 4x Stainless Steel Misting Nozzles - 0.006" Orifice 10/24 thread
- 25ft high-pressure flexible 1/4in tubing per fan assembly
- Push-lock fittings
- All necessary misting parts and accessories for installation
- WiFi - Enabled with Smartphone Controller (Optional)
Mist Pump Specifications:
- Maximum Pump Speed (0.15/0.30 GPM): 1800 RPM
- Maximum Inlet Pressure: 100 PSI
- Minimum Inlet Pressure: (Based on setting on the Pressure switch) or Flooded if the Pressure switch is bypassed
- Maximum Outlet Pressure: 1500 PSI
- Maximum Flow: 0.15 & 0.30 GPM (Refer to manufacturing label on pump)
- Full load amps. (0.15/0.30 GPM): 1.38 Amps / 2.15 Amps
- Voltage: 110V/ 220V AC (Refer to manufacturing label on the pump)
- Noise Level: 75 db
- Maximum Fluid Temperature: For Room Temperature / Cold Water applications only
18 Inch Outdoor Fan Features:
- Size: 18”
- Color: Black or White
- RPM: 1570
- AMPS: 2.0, CFM:6300
- 3-speed Pull chain
- Stainless Steel hardware with Durable Corrosion-resistant finish
- Motor with thermal overload protection
- Industrial Grade aluminum blade
- 9ft Heavy Duty cord with cord wrap
- Quiet operation
- For Indoor/ Outdoor Use
- Osha Approved Grill
Stainless Steel Mist Ring:
- Made with 3/8in rigid Stainless Steel Tubing
- Works with all High and Mid Pressure Booster Pumps
- Pre-threaded nozzle slots for 10/24 Thread
- Rated for up to 2000 PSI
- Attaches to any wall mount, floor, or pedestal fan
- Includes Push-lock Fit
Does it have to be wall mounted?
Yes these are considered wall mount fans. Bracket can also be mounted on the ceiling with fan slightly tilted down
How far apart should they be spaced?
Fans should be placed 20-25 Feet apart
Is this battery powered and is the battery rechargeable?
No this is not battery powered. The fan must be plugged into a 110v outlet
If you install a product high, does it have an accessible on and off switch?
This fan has a pull chain power and speed option. You can always add additional pull chain to desired length.
Specifications
| Number Of 18 Inch Fans | 1 Fan, 2 Fans, 3 Fans, 4 Fans, 5 Fans, 6 Fans, 7 Fans, 8 Fans |
