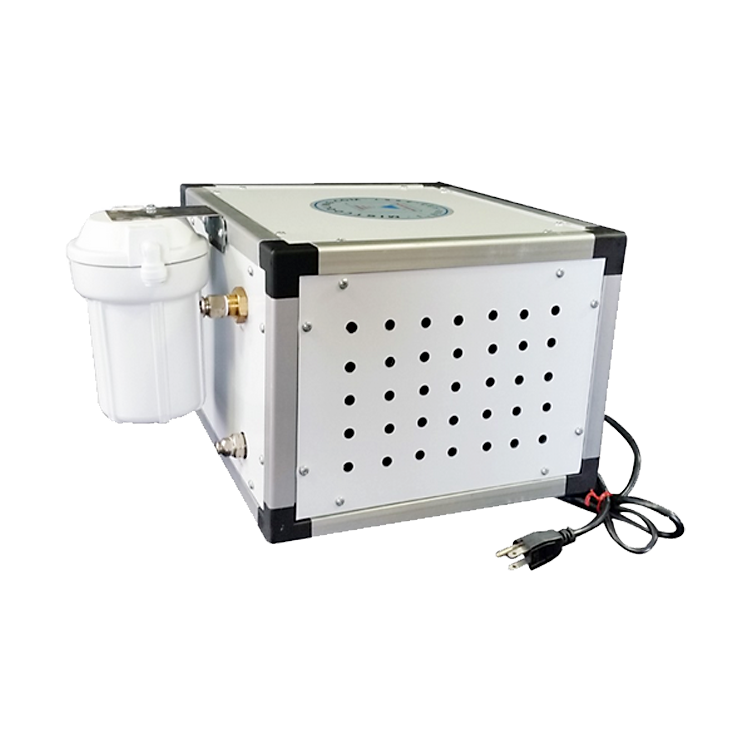

Misting Pump Multi Zone - 2 Misting Zone MX14222
The most common use of this pump is for creating independent residential misting zones, including patios, pool areas, gazebos, and commercial installations like outdoor restaurants
1500psi oil-based pumps - 2GPM
Maximum number of nozzles : 160
-
Flow rate (gpm) : 2
-
Filtration :
5 Micron
-
Voltage :
110V AC
- Full load Amps : 16.5
- RPM : 1745
- HP : 2
- Pump Inlet² : 3/8" or 1/4" pushlock
- Pump Outlet : 3/8" or 1/4" pushlock
- Solenoid : Yes
- Pressure switch/ No water cut-off : Yes
- Drive : Direct
- Thermal safety Switch³ : No
- By-pass : Yes
- Motor type : TEFC
- Noise level : 50-60 DB
- Oil Less : No
- Recommended operating Temp. : 33⁰- 160⁰ F
- Dimensions (inch) : 26.5 x 15.5 x 13
-
Weight (lbs.) :
76
1500psi oil-based pumps - 1GPM
Maximum number of nozzles : 80
- Flow rate (gpm) : 1
- Filtration : 5 Micron
- Voltage : 110V AC
- Full load Amps : 9.2
- RPM : 1745
- HP : 1
- Pump Inlet² : 3/8" or 1/4" pushlock
- Pump Outlet : 3/8" or 1/4" pushlock
- Solenoid : Yes
- Pressure switch/ No water cut-off : Yes
- Drive : Direct
- Thermal safety Switch³ : No
- By-pass : Yes
- Motor type : TEFC
- Noise level : 50-60 DB
- Oil Less : No
- Recommended operating Temp. : 33⁰- 160⁰ F
- Dimensions (inch) : 26.5 x 15.5 x 13
- Weight (lbs.) : 61
1500psi oil-based pumps - 0.5 GPM
Maximum number of nozzles : 45
- Flow rate (gpm) : 1
- Filtration : 5 Micron
- Voltage : 110V AC
- Full load Amps : 5.8
- RPM :
1750
- HP : 0.5
- Pump Inlet² : 3/8" or 1/4" pushlock
- Pump Outlet : 3/8" or 1/4" pushlock
- Solenoid : Yes
- Pressure switch/ No water cut-off : Yes
- Drive : Direct
- Thermal safety Switch³ : No
- By-pass : Yes
- Motor type : TEFC
- Noise level : 50-60 DB
- Oil Less : No
- Recommended operating Temp. : 33⁰- 160⁰ F
- Dimensions (inch) : 26.5 x 15.5 x 13
- Weight (lbs.) : 52
Specifications
| Multi Zone Misting Pump - Capacity | 0.5 GPM, 1 GPM, 2 GPM |
