  3. Patio Misting Fan - 18 Inch Patio Misting Fan - 1500 PSI Misting Pump - With Center Hub - Non Oscillating
2,995.00
Patio Misting Fan - 18 Inch Patio Misting Fan - 1500 PSI Misting Pump - With Center Hub - Non Oscillating

Patio Misting Fan - 18 Inch Patio Misting Fan - 1500 PSI Misting Pump - With Center Hub - Non Oscillating

https://www.navrangllc.com/web/image/product.template/173/image_1920?unique=fe0d465

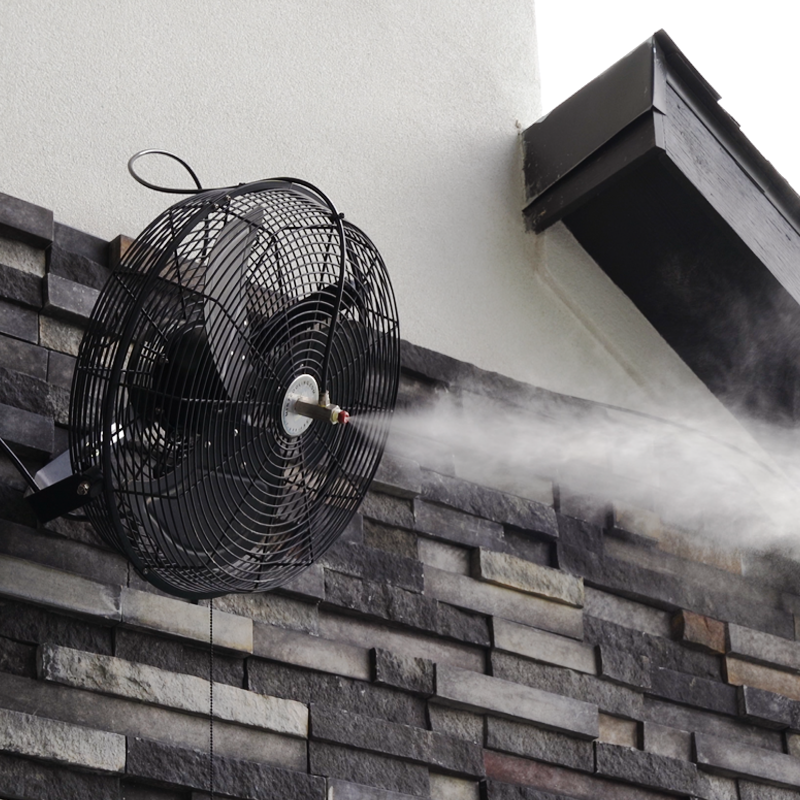

Fan Misting System
Fan misting system with the 18-inch misting fan and the patented center fan misting hub combines the decorative looks with the high performance of mistcooling products to create a comfortable zone of outdoor cooling.

Fan misting systems can be used for residential outdoor patio misting, restaurant and commercial outdoor seating areas as well as industrial cooling applications.

Outdoor fans come are waterproof and come with wall mounting brackets and required hardware for easy installation. Our fan mistcooling systems are easy to set up, without any prior experience, and are designed to give you the instant cooling effect, whilst complementing the outdoor looks of your home, restaurant, or industry.

Patio Misting Fan with Outdoor Patio Fan Includes:

1x  Max 1500 PSI High Pressure Misting Pump with No Water Cut-Off, Pressure Bypass, Solenoid, Outdoor Enclosure, and Commercial Filtration
1x  High Velocity 18'' Dia 3 speed Fan with Mounting Bracket - Prewired Patented Center Mist Fan hub Assembly
1x  Patented Center Mist Fan hub Assembly with Ultrafine KBN RED Mist Nozzle
25ft high-pressure flexible tubing per fan assembly
Push-lock fittings
All necessary misting parts and accessories for installation
WiFi - Enabled with Smartphone Controller (Optional)
Mist Pump Specifications:

Maximum Pump Speed (0.15/0.30 GPM): 1800 RPM
Maximum Inlet Pressure: 100 PSI
Minimum Inlet Pressure: (Based on setting on Pressure switch) or Flooded if the Pressure switch is bypassed
Maximum Outlet Pressure: 1500 PSI
Maximum Flow: 0.15 & 0.30 GPM (Refer to manufacturing label on pump)
Full load amps. (0.15/0.30 GPM): 1.38 Amps / 2.15 Amps
Voltage: 110V/ 220V AC (Refer manufacturing label on the pump)
Noise Level: 75 DB
Maximum Fluid Temperature: For Room Temperature / Cold Water applications only
Fan Center Hub Specifications:
Use with KBN Nozzles
Patented Design
Stainless Steel Construction
Easily attaches to most fans
Can work at low, medium & high pressure


18 Inch Outdoor Fan Features:
Size: 18”
Color: Black or White
RPM: 1570
AMPS: 2.0, CFM:6300
3-speed Pull chain
Stainless Steel hardware with Durable Corrosion-resistant finish
Motor with thermal overload protection
Industrial Grade aluminum blade
9ft Heavy Duty cord with cord wrap
Quiet operation
For Indoor/Outdoor Use
Osha Approved Grill

$ 1,449.99 1449.99 USD $ 1,449.99

$ 1,449.99

Not Available For Sale

  • Number Of 18 Inch Fans W Center HUB/Non Oscillating

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Yes these are considered wall mount fans. Bracket can also be mounted on the ceiling with fan slightly tilted down

Fans should be placed 20-25 Feet apart

Is this battery powered and is the battery rechargeable?

No this is not battery powered. The fan must be plugged into a 110v outlet

This fan has a pull chain power and speed option. You can always add additional pull chain to desired length.


Specifications

Number Of 18 Inch Fans W Center HUB/Non Oscillating 1 Fan, 2 Fans, 3 Fans, 4 Fans, 5 Fans, 6 Fans, 7 Fans, 8 Fans, 9 Fans, 10 Fans, 11 Fans, 12 Fans, 13 Fans, 14 Fans, 15 Fans
