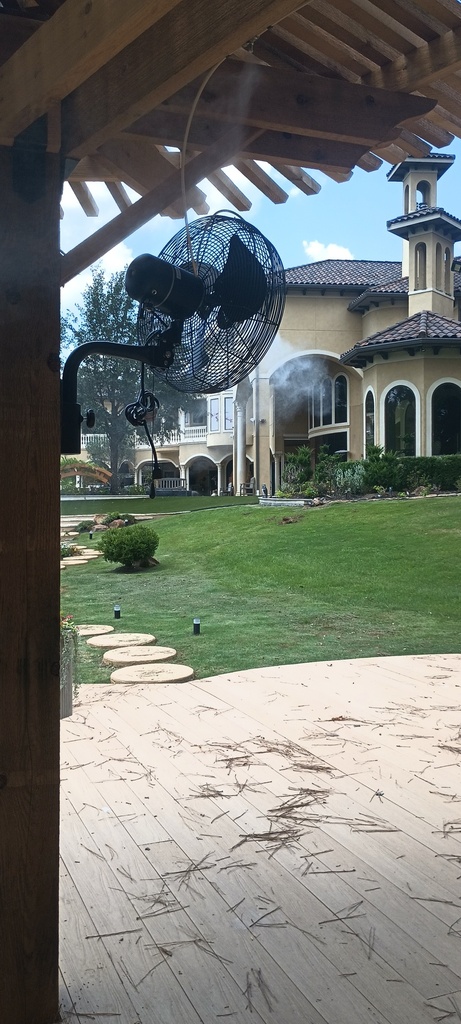

Patio Misting Fan - Outdoor Fan 18 Inch Oscillating - High Pressure - With Center Hub
Mistcooling Fan Systems for Outdoor Misting
Who says you should stay indoors because it’s scorching hot outside? With Mist Cooling Inc’s 18” Misting Fan Kit, it’s simple and easy to make your outdoors cool and relaxing even when the sun shines with all its brightness. Our 18” misting fan kit is a perfect combination of easy installation, superior performance, and sleek looks. And this is exactly why it is repeatedly selected by customers to cool high profile venues like restaurants, sports events, theme parks, five-star hotels, and industrial plants.
This high-pressure mister has a built-in 1500psi misting pump capable of supporting not 1 or 2 but up to 8 fans. It is UL and OSHA approved, which makes it the best choice for outdoor use. The pump is enclosed with a noncorrosive enclosure that makes it durable and provides protection from extreme weather conditions.
If you are worried about the noise, then relax! This misting fan operates quietly. You can place the pump near your seating area to provide your guests with a comfortable and cool environment without any worries.
Our 18” Misting Fan Kit is expandable and can easily be customized according to your event cooling needs and requirements. To show our confidence in our product, we offer you a 1-year warranty on the fans and pumps against defects.
You can now control the misting pump with an add-on Smart phone controller ( Requires strong WiFi signal at the pump)
Patio Misting Fan with Outdoor Patio Fan Includes:
- 1x Max 1500 PSI High-Pressure Misting Pump with No Water Cut-Off, Pressure Bypass, Solenoid, Outdoor Enclosure, and Commercial Filtration
- 1x High Velocity 18'' Dia 3 speed Oscillating Fan with Mounting Bracket - Prewired Patented Center Mist Fan hub assembly
- 1x Patented Center Mist Fan hub Assembly with Ultrafine KBN RED Mist Nozzle
- 25ft high-pressure flexible tubing per fan assembly
- Push-lock fittings
- All necessary misting parts and accessories for installation
- WiFi - Enabled with Smartphone Controller (Optional)
Does it have to be wall mounted?
Yes these are considered wall mount fans. Bracket can also be mounted on the ceiling with fan slightly tilted down
How far apart should they be spaced?
Fans should be placed 20-25 Feet apart
Is this battery powered and is the battery rechargeable?
No this is not battery powered. The fan must be plugged into a 110v outlet
If you install a product high, does it have an accessible on and off switch?
This fan has a pull chain power and speed option. You can always add additional pull chain to desired length.
PATIO MISTING FAN
18 Inch
- Color: Black
- Oscillating : Yes
-
Outdoor Rated
: Yes
- Wall Mount
-
Recommended Application : Residential / Restaurant
OUTDOOR FAN
24 Inch
- Color: Black
- Oscillating : Yes
- Outdoor Rated
: Yes
- Wall Mount
- Recommended Application : Residential / Restaurant / Industrial
INDUSTRIAL MISTING FAN
30 Inch
- Color: Black
- Oscillating : Yes
- Outdoor Rated
: Yes
- Wall Mount
- Recommended Application : Residential / Restaurant / Industrial
18 Inch Oscillating Fan
- Size: 18 inches
- Color: Black
- Mount Type: Wall mount
- CFM: 6300
- RPM: 1570
- Amps: 2.0
- Phase: 1
- HP: 1/10
Features:
- High-velocity airflow with oscillation feature
- Durable and weather-resistant construction
- Suitable for outdoor use
- Adjustable tilt head for targeted airflow
- Oscillating function for wider coverage
- Power: Standard electric plug-in
Applications: Perfect for patios, decks, and larger outdoor spaces
Installation: Easy wall mounting with provided hardware
1500 PSI Pump
- Maximum Outlet Pressure: 1500 PSI
- Maximum Pump Speed (0.50/ 1 / 2 GPM): 1750/ 1750/ 1750 RPM
- Maximum Inlet Pressure: 125 PSI
- Minimum Inlet Pressure: 40 PSI (Based on setting on Pressure switch) or Flooded if Pressure switch is bypassed
- Maximum Flow: 0.50, 1 & 2 GPM (Refer to manufacturing label on pump)
- Voltage: 110V/ 220V AC (Refer manufacturing label on the pump)
- Oil Type: AW-100
- Oil Capacity: 11.8oz
- Maximum Fluid Temperature: For Room Temperature / Cold Water applications only. (Please refer page 19 for full specs of the pump)
- Ultra-low flow rate hollow cone spray nozzle with the finest atomization among hydraulic nozzles.
- Minimal clogging with free passage diameter 1.3–2.6 times bigger than that of conventional nozzles.
- High-purity alumina ceramic tip provides stable performance with longer life even under high pressure conditions.
[STANDARD PRESSURE] 145.04 psi
[APPLICATIONS]
- Cooling: Poultry farms, outside cooling
- Humidifying: Air handling units, greenhouses
- Spraying: Alcohol, disinfectant
- Others: Dust suppression, irrigation for greenhouse
[DROPLET SIZE] : 35um - 65um ( Red ----> Purple)
[SPRAY ANGLE CODE] : 80
Structure
- One-piece plastic nozzle molded around a high-purity ceramic orifice.
- Thread is R1/4 (BSPT 1/4 male) or NPT 1/4 male.
- All models include a built-in strainer and check valve.
Material
- Nozzle orifice: ceramic
- Closer: polyester elastomer
- Nozzle body: PA
Weight
- 4 g
Max. operating pressure: 1000 psi
Nozzle Flow Rate - GPH - 1000 psi
Specifications
| Number Of 18 Inch Fans Oscillating W Center Hub | 1 Fan, 2 Fans, 3 Fans, 4 Fans, 5 Fans, 6 Fans, 7 Fans, 8 Fans, 9 Fans, 10 Fans, 11 Fans, 12 Fans, 13 Fans, 14 Fans, 15 Fans |
